SmartWitness CP4
Features
- Connect Up to 4 Cameras
- Automatically Upload Video to Online Portal
- Optional Backup Monitor and Real Time GPS Tracking
- Suitable For Vehicles, Trucks, School Buses, Taxis
- Detect Critical Events (Impacts, Over Speeding, and Sudden Stops)
Product Description
The SmartWitness CP4 is the world’s most advanced vehicle based DVR with built-in GPS, wireless video upload, and powerful telematics. The CP4 was designed to provide evidence leading up to and during a road traffic event. An alert can be sent instantly with a video a clip of the incident.
Connect up to 4 cameras and an optional LCD monitor to have full protection inside and outside of your vehicle.

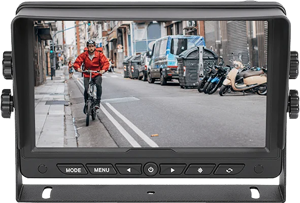

The LCD monitor makes reversing safer by giving the driver greater visibility around the vehicle.
With the optional 3G or WiFi dongle video clips can be automatically uploaded to the SmartMail or WBC Fleet online platforms. This eliminates the need to remove the SD card to watch the video.
The CP4 comes with a 64GB SD card. The total storage capacity is 128GB.
The cameras can be placed in a variety of locations, such as facing the driver, the road, the sides, the rear, cargo area, passengers, etc. The DVR starts recording automatically when the ignition is turned on.
The CP4 can be placed into a tamper resistant mount to provide extra protection.
Efficient Fleets is an authorized reseller for SmartWitness, the industry leader in vehicle CCTV & safety systems. The CP4 can help reduce liability and promote safe driving. A video record of your driver’s activities is a valuable tool for enforcing good driving habits and providing video evidence in case of an accident. Contact us today.
Recording
- 720P recording on all CH 1-3, D1 on CH 4
- 128GB SD storage capacity, record up to 150 hours of footage on 4 camera setup
- Various camera options: wide angle, weatherproof, infrared, dome, side view, rugged, reverse cameras, etc.
- Dual Record mode (Continuous + Event)
- Optional Audio Recording
- Connects directly to vehicle ignition power, automated operation.
- Tamper-Resistant locking case available; Key required to access SD card Data.
- GPS data records full time to provide location data, vehicle speed, and accurate time/date.
- Adjustable Resolution & Frame Rate
- Built-in G-Shock Sensor and Gyro (adjustable sensitivity)
- Three 12V alarm input triggers for advanced event recording. Two 5V alarm outputs for 3rd party systems integration.
- Wired remote control & Emergency/Panic button for driver activated event recording.
- Auto SD card format feature. CP4 automatically detects SD error/corruption and auto-formats itself and begins recording again.
- Delay power shutdown feature enables recording for up to 24 hours after ignition off.
- Built-in temperature logic for improved performance in high-temp environments.
- REST API available for system integration.
Specifications
- PC Analysis Software Included
- Compatible with SmartWitness Smart API for AVL/Telematics Integration.
- Filter Data Search by Time/Date, Event, Vehicle Speed, G-Force level.
- MP4 Conversion Tool. Data Remains Watermarked.
- Google Maps Integration for Route Tracking
- Google Earth Export Tool for Advanced Route Tracking and Archiving.
- Privacy masking feature for blurring out faces or license plate numbers.
- 31 day Vehicle Tracking History, showing vehicle location, speed and driving style regardless if event video was recorded or not.
- Save/Print Event Reports
- OTA Software & Firmware Updates
- With optional LCD monitor connected, view all four cameras at once or playback recorded videos in the vehicle.
